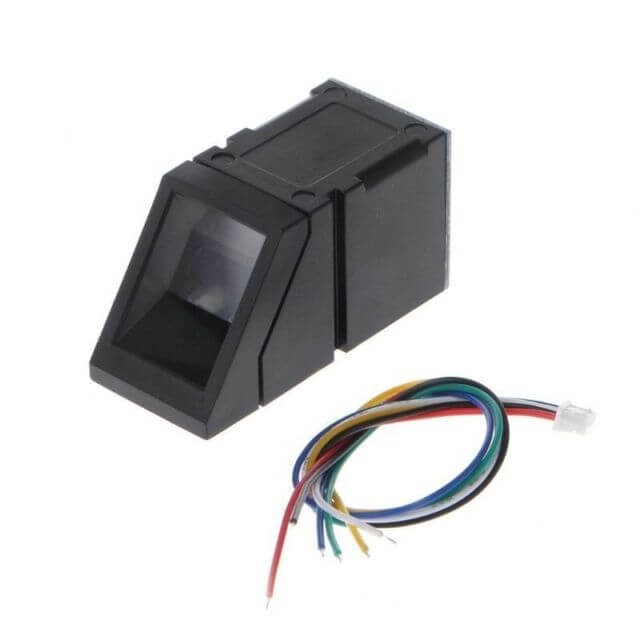

R307 Optical Fingerprint Module

Specifications

• Fingerprint sensor type: Optical
• Sensor Life: 100 million times
• Static indicators: 15KVBacklight:  bright green
• Interface: USB1.1/UART(TTL logical level)
• RS232 communication baud rate: 4800BPS~115200BPS changeable
• Dimension: 44.1*20*23.5mm
• Verification Speed:  0.3 sec
• Scanning Speed: 0.5 sec
• Character file size:  256 bytes
• Template size:  512 bytes
• Storage capacity: 1000
• Security level: 5 (1,2,3,4,5(highest))
• False Acceptance Rate (FAR) :0.001%
• False Rejection Rate (FRR): <1.0%
• Voltage :4.2-6.0 VDC
• Working current: Typical 50 mA, Peak 80mA
• Matching Method:  1: N
• Operating Environment Temperature: -20 to 40° centigrades
