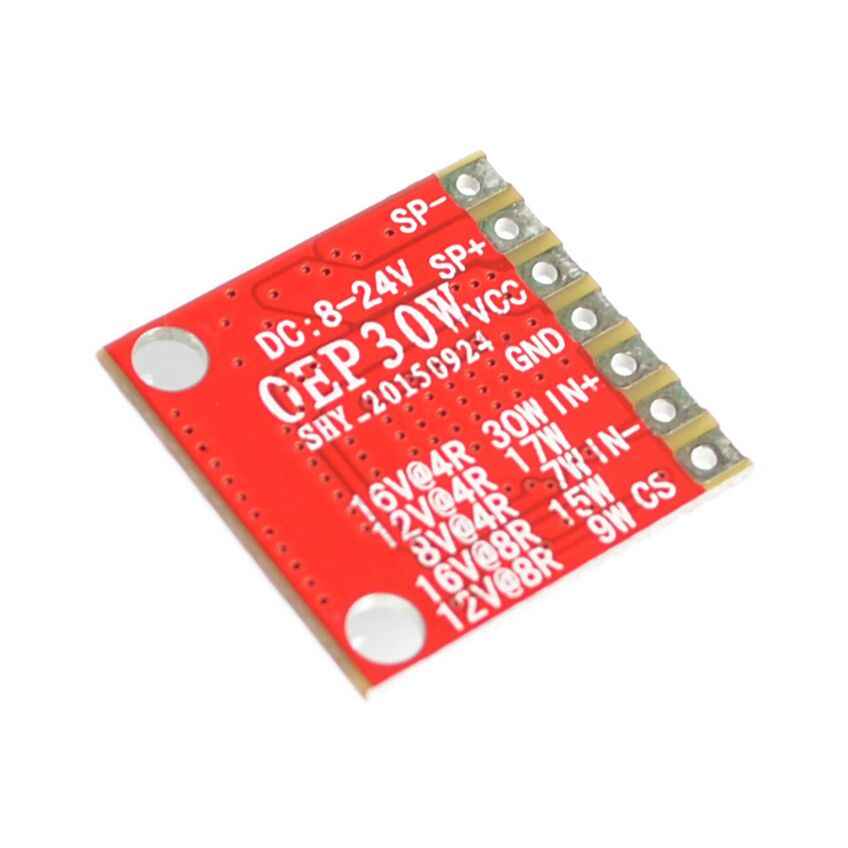

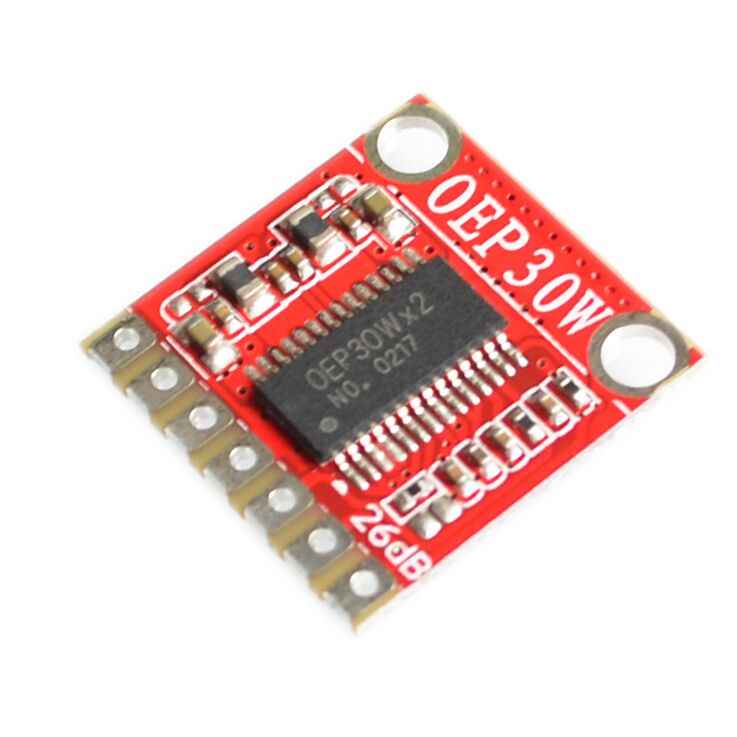

Digital Amplifier Board OEP30W Mono

Description:
1. Model: OEP30W
2. Work mode: D class(PWM modulation)
3. Chip:OEP30W
4. Operating Voltage:DC8-24V
5. Size:25*18*2mm
6. Output Power:30W/8ohm/24V;15W/8ohm/16V;22W/4ohm/16V;15W/4ohm/12V;
7. Frequency response:20Hz-15KHz
8. Channel: Dual Channel
9. Quiescent Current:11mA/12V
10. Noise ratio:102dB
11. Recommended Audio:30-100W
12. Output Impedance:4-8ohm
13. Harmonic distortion:less then 0.1%
