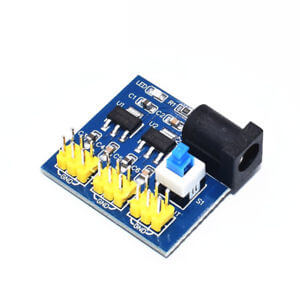

DC-DC 12V TO 3.3V 5V 12V Power Module Multi Output Voltage Conversion

৳ 220.00

One Channel input: DC 6V – 12V (input voltage must be output voltage higher than 1V or more.) Triple Output: 3.3V (+ – 0.05v error), 5.0V (+ – 0.05v error), 800mA (load current must not exceed 800ma), 12V (12V input directly to the output) Specially designed two pin mounting holes, can be directly fixed to the board extended tunnel experiments; Multiple input and output pin, easy to use and connect; PCB size: (L*W)3.20cm * 3.00cm/1.26″”*1.18″”
DC-DC 12V to 3.3V 5V 12V Power Module Multi-Output Voltage Conversion module is flexible and easy to use. The module is powered by 6V to 12V DC input, and provides three fixed DC outputs: 3.3V, 5.0V, and a third output which is a direct connection to the DC input.
Perfect for providing support power for your electronic design, every DIY hobbyist should have a couple of these flexible power supplies on their electronics workbench. They can also be used as a multi-output fixed voltage DC power supply in electronic equipment designs.
Output power on/off switch Two-row multiple pin outputs, easy to use and connect Red LED illuminates when input DC power is supplied and output is turned on
